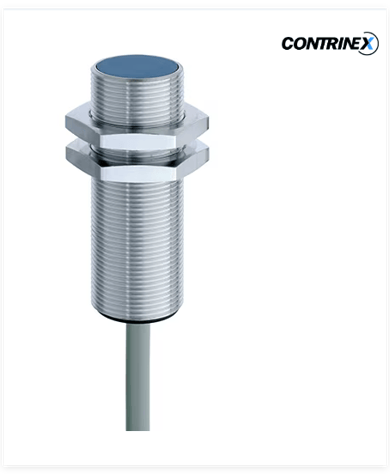

CONTRINEX模拟量检测距离500系列M18准齐平0-10mm 0-10V+4-20mA

SKU: DW-AD-509-M18-320/325

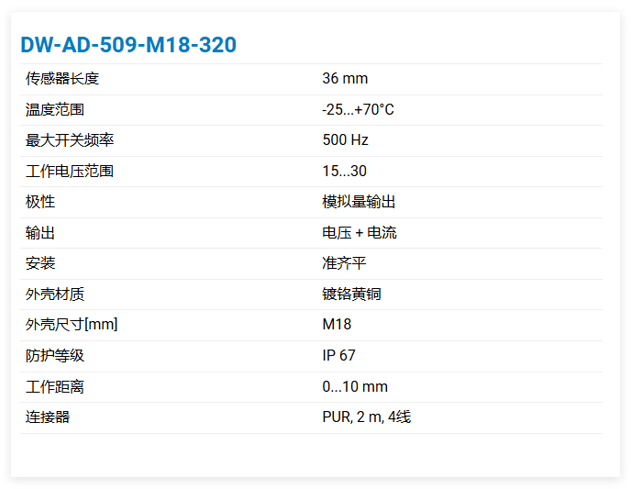

Operating range 0...10 mm

Switching frequency max.500 Hz

Supply voltage 15...30

PolarityAnalogOutput Voltage + Current

Connection PUR, 2 m, 4 wire

Housing size [mm] M18

Enclosure rating IP 67

Housing material Chrome-plated brass

Temperature range -25...+70°C

Sensor Height 36 mm

Mounting Quasi-embeddable
