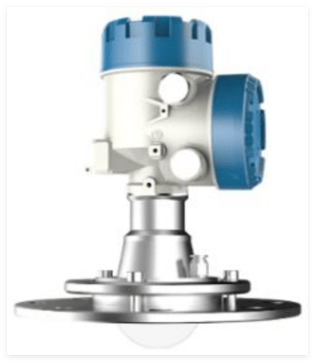

AFR70 系列连续调频雷达物位计适用于料仓内固体介质的连续物位测量，最大量程 100 米。

特点：

ACP雷达物位计采用了高达 26GHz-108GHz 的发射频率，因而具有高频调频FMCW脉冲发射较窄的雷达脉冲，经天线向下传输，脉冲接触到被测介质表面后被反射回来，再次被天线系统接收并将其传输给电子线路部分自动转换成物位信号。 此款雷达物位天线被进一步优化处理，新型的快速的微处理器可以进行更高速率的信号分析处理，使得仪表可以用于：反应釜或固体料仓非常复杂的测量条件

. 非接触雷达，无磨损，无污染

. 天线尺寸小，便于安装

. 波长更短，对在倾斜的固体表面有更好的反射

. 测量盲区更小，对于小罐测量也会取得良好的效果

. 波束角小，能量集中，增强了回波能力的同时，又有利于避开干扰物

. 几乎不受腐蚀、泡沫影响

. 几乎不受大气中水蒸气、温度和压力变化影响

. 严重粉尘环境不会影响电磁波工作

. 高信噪比，即使在波动的情况下也能获得更优的性能

. 由K到W的广泛带宽频率，是测量固体，粉沫，液体，粘性物体和低介电常数的最佳选择

应 用： 液体，固体料、过程容器或强粉尘易结晶、结露场合

测量范围： 0-100 米 过程连接： 螺纹、法兰

介质温度： -40～250℃ 过程压力： 常压

精 度： ±15mm 频率范围： 26GHz-108GHz

防爆等级： Exia Ⅱ CT6 Ga、Exd ia Ⅱ CT6 Gb 防护等级： IP67

信号输出： 4...20mA/HART(两线/四线)RS485/Modbus

电源：24Vdc-220Vac

The AFR70 radar level meter uses a transmission frequency of up to 26 GHz-108 GHz, which has a frequency FM-CW pulse emission to transmit a narrow radar pulse downwards through the antenna. The pulse is reflected back after contacting the surface of the measured medium and is received again the antenna system and automatically converted into a level signal. This radar level antenna has been further optimized, and the new fast microprocessor can perform signal analysis and processing at a higher rate allowing the instrument to be used for: very complex measuring conditions in reactors or solid silos.

. Non-contact radar, no wear, no pollution

. Small antenna, easy to install

. Shorter wavelength, better reflection on inclined solid surfaces

. Smaller measuring blind area, also good results can be achieved for small tanks

. Small beam angle, energy concentration, enhanced echo capability, and also conducive to avoiding interference

. Almost not affected by corrosion, foam

. Almost not affected water vapor, temperature and pressure changes in the atmosphere

. Serious dust environment will not affect the electromagnetic wave work

. High signal-to-noise ratio, even fluctuating cases can also achieve better performance

. The wide bandwidth frequency from K to W is the best choice for measuring solids, powders, liquids, viscous objects and low constants

Application: Liquids, solids, process containers or strong dust, easy to crystallize, condense occasions
